quyosh yo'l chiroqi

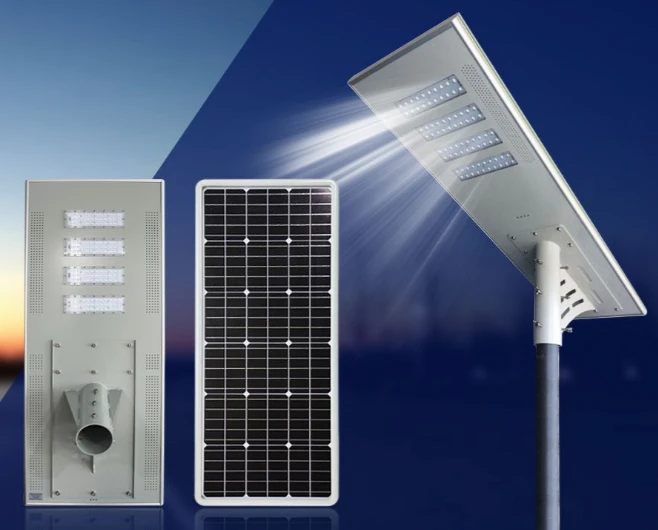

80w quyoshli ko'cha chiroqlari 10400 lumen, balandligi 8-9 metr uchun metr,
1. Material: alyuminiy plyus kompyuter reflektori
2. Solar Panel(can be configured according requirements: 18V 100W(high efficiency>19,5 foiz)
3. LED: Philips 3030 100W LED chiroq 10400LM dan ortiq
4. Batareya: Li-lion lityum batareya 12V 42AH
5. O'rnatish balandligi:8-9m
6. Yorug'lik vaqti: kechasiga 12 soat, zaxira vaqti: 3-5 yomg'irli kunlar
7. Ishlash harorati: -20 daraja ~ plyus 60 daraja
8. Zaryadlash vaqti: yaxshi quyosh nuri bilan 7 soat
9. Yoritish rejimi: yorug'likni boshqarish va vaqtni boshqarish
10.Solar ko'cha chiroqining o'lchami: 1450 * 480 * 60 mm
Shimoli 26KGS
- Tez yetkazib berish
- Sifatni tekshirish
- 24/7 mijozlarga xizmat ko'rsatish
Mahsulotni tanishtirish
Quyosh yo'l chiroqlari uchun ishlab chiqarishga kirish
| Quyosh panelining ishlash muddati | 25 yil |
| LED maksimal quvvat | 12V 80W |
| Led chip brendi | Yuqori yorqinlikdagi Philips 3030 |
| Lumen (LM) | 10400lm-11200lm |
| LEDning ishlash muddati | 50000 soat |
| Zaryadlash vaqti (quyosh bo'yicha): | 6-7soat (etarli darajada kuchli porlash bilan) |
| Ish vaqti | kechasi 12 soat; 3-5 yomgʻirli kun |
| CCT (k) | 6500k-7000k |
| Yorug'lik orasidagi bo'shliq (m): | 25-30m |
| Chiroqlar materiallari | alyuminiy qotishmasi |
| Sertifikat: | ISO/CE/ROHS/IP65 |
| Birlik hajmi: | 1375 * 420 * 60 mm |
| Karton hajmi: | 1460 * 480 * 210 mm |
| Miqdor/ctn: | 1 to'plam / ctn |
| Ish rejimi | Harakat sensori / vaqtni boshqarish |
| 20GP konteyner: | 200 to'plam |
| 40GP konteyneri: | 416 to'plam |
| LED quvvati (DC12V) | Quyosh paneli quvvati | Battareya turi | Led chip brendi | Lumen (lm) | O'rnatish balandligi | Nur orasidagi bo'shliq | Birlik hajmi (mm) | NW(kg) |
| 6W | 18V/8W | 3,7V/8AH | SMD2835 | 660 | 3-4m | 8-10m | 440*215*100 | 2.0 |
| 8W | 18V/10W | 3,7V/8AH | 880 | 3-4m | 8-10m | 440*215*100 | 2.1 | |
| 10W | 18V/10W | 3,7V/12AH | 1100 | 3-4m | 10-15m | 780*295*44 | 2.3 | |
| 15W | 18V/25W | 12V/12AH | Bridgelux | 1800-1900 | 5-6m | 18-20m | 920*295*45 | 9.5 |
| 20W | 18V/30W | 12V/15AH | 2400-2600 | 5-6m | 18-20m | 920*295*45 | 9.5 | |
| 40W | 18V/60W | 12V/24AH | 4000-4400 | 6-7m | 20-25m | 1136*295*45 | 12.9 | |
| 50W | 18V/70W | 12V/30AH | 5500-6000 | 7-8m | 25-30m | 1136*420*45 | 17.0 | |
| 60W | 18V/80W | 12V/42AH | 6000-6600 | 8-9m | 25-30m | 1136*420*45 | 18.6 | |
| 70W | 18V/90W | 12V/45AH | 7000-7700 | 8-9m | 25-30m | 1200*460*45 | 21.0 | |
| 80W | 18V/100W | 12V/50AH | 8000-8800 | 9-10m | 25-30m | 1200*460*45 | 21.0 |
